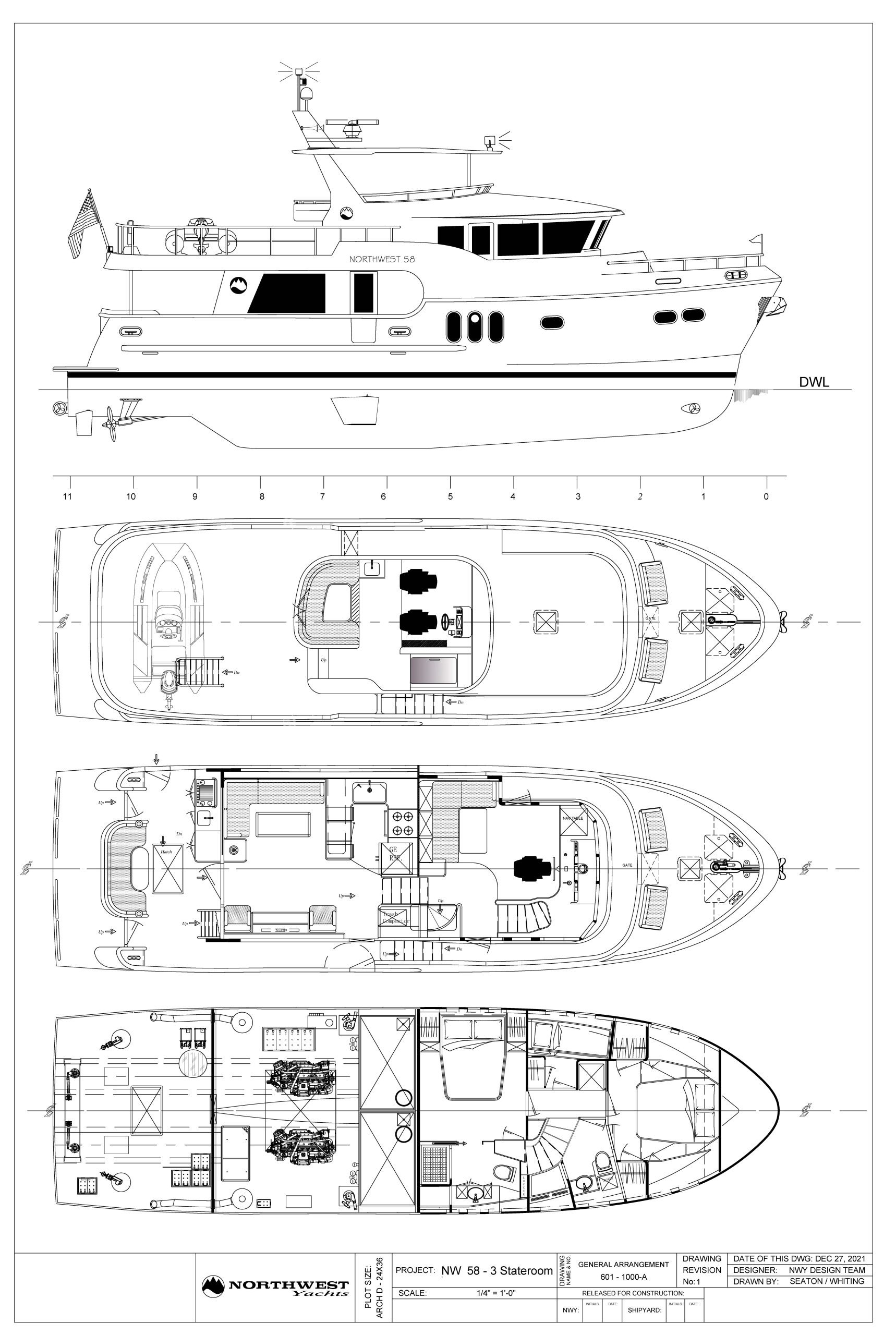

Northwest 58 – Twin Engines | Three Staterooms

The Northwest 58 is a very roomy 3 stateroom, 3 head boat having more room aboard than most boats in its class.  With one sleeping on the pilot berth and 2 more on an optional sleep sofa, the 58 can easily accommodate 9. There is full standing headroom down the center of the engine compartment and the twin John Deere power will cruise at 8-12 knots but push the boat into the mid to upper teens when desired.

  • Length over all – 58′  4″  (17.67 M)
  • Length at waterline – 53’  1”  (16.15 M)
  • Navigation beam – 19’  0”  (5.79 M)
  • Draft  – 5’  3”   (1.52 M)
  • Displacement (half load) – 80,000 lbs.  (36.28 MT)
  • Bridge clearance (antennas down) – 26’  2”  (7.92 M)
  • Fuel tank capacity – 1,200 US gals   (4,542.49 L)
  • Fresh water tank capacity – 450 US gals  (1,703.43 L)
  • Holding tank capacity – 300 US gals  (1,135.62 L)
  • Twin John Deere 6090SFM75 (M4)500hp ea. (total 1000hp)
  • ZF® 305-2 transmissions (2.5:1 ratio)
  • Seatorque Boss® Enclosed Shaft System (2)
  • Northern Lights® M844W3, generator 16KW/120VAC/240VAC/60HZ with sound enclosure
  • Trac® active fin, hydraulic stabilizers
  • Trac® hydraulic bow thruster
  • Cruisair® remote air conditioning system, with condensing units in engine room and cooling units in staterooms, salon and pilothouse, capacity 60,000 BTU
  • Sea recovery® SRC AWC 900-2, 900gpd water maker system
  • Engine exhaust riser with insulation
  • Work bench with sink
  • 120VAC fluorescent lighting and 24VDC dome light
  • Fiberglass non-skid floor
  • S/S engines beds and insulation isolation mounts
  • Ferro white color gelcoat for hull, deck and superstructure
  • Ferro, dark gray color gelcoat for non-skid areas
  • International® epoxy osmosis protect primer
  • International® anti-fouling paint, black color
  • All FRP lay-up by hand and vacuum bagged.
  • Stitched multi-axial reinforced single skin hull bottom
  • Kevlar® layer in forward 1/3 of hull from 12” above waterline and below
  • Vinyl ester resin for hull skin coats four (4) layers
  • Solid bottom and foam sandwich construction for hull topsides
  • Corecell® PVC foam sandwich construction in vacuum bag
  • Transverse and longitudinal stringers glassed in the hull bottom
  • The hull and deck are bolted and laminated with fiberglass
  • Trac® active fin, hydraulic stabilizers
  • Trac® hydraulic bow thruster
      • Portuguese bridge with access gate to forward deck
      • Cabinet storage
      • Courtesy lights on stairs
      • Side deck boarding door with logo step plate
      • S/S horizontal hand railing on transom
      • Transom shower hot & cold water
      • Fresh and raw water wash down faucet
      • Transom door with logo step plate.
      • Rub rail with S/S back
      • 10” Cleat (2) one on each side of platform
      • Re-boarding ladder under swim platform
      • Cabinet storage
      • Courtesy lights on stairs
      • Side deck boarding door with logo step plate
      • Storage cabinet with sink
      • Galleymate® Entertainer 2000 built-in BBQ
      • Port and starboard S/S hawse pipe (2)
      • Mooring cleat (2)
      • 120VAC outlet (1)
      • Courtesy light (4)
      • Wet locker
      • Nonskid deck surface, painted
      • S/S 316 safety stanchions and railings
      • S/S mooring cleat (4)
      • S/S hawse holes with roller (4)
      • Chain locker with fiberglass hatch
      • Manship LDH-40-1 S/S frame hatch (2)
      • Fresh and raw water wash down faucet (2)
      • Flag pole socket
      • Teak flag pole 2ft length (1)
      • Courtesy light (4)
      • Maxwell VWC3500 hydraulic windlass w/ chain stopper and chain counter
      • Delta Polished S/S anchor 50 Kg (110lb)
      • Anchor chain 3/8″ HT x 400ft.
      • Polished S/S anchor roller assembly
      • Brower 1200 davit crane
      • S/S 316 safety stanchions and railings
      • Fiberglass mast with 24VDC deck lighting
      • Switlik Solas 6 MKII 6 man life raft
      • Llebroc Tradewinds Flybridge helm chairs (2)
      • Instrument console with complete instrumentation
      • Steering wheel, S/S
      • Compass (1)
      • S/S frame windshield with grab rail
      • Waterproof speakers (2)
      • Intercom (1)
      • Bench seats with cushions and table
      • 120VAC outlet (1)
      • Courtesy lights (4)
      • Portuguese bridge with access gate to forward deck
      • Racor® 75/1000MAX, dual fuel filter for each engine (2)
      • Racor® 75/500MAX, dual fuel filter for generator
      • Kobelt® power assisted steering system
      • Seawater strainers (2)
      • Manual bilge pump (1)
      • Bronze thru-hull fittings
      • Bosch stacked washer/dryer
      • Fresh water pressure system with Headhunter® Mach 5, 120VAC pump (1), Headhunter® XR124, 24VDC pump (1)
      • Deck washdown sea water system with Headhunter® XRS 124, 24VDC pump (1)
      • Headhunter® WTS-1500B, black tank sentry with high alarm and auto discharge
      • Headhunter® tank sentry system for gray, fuel and water tanks
      • Shore water connection
      • Blower vented to the exterior for each shower room
      • Sealand® macerator pump (2)
      • Pe-Al-Pe pipe for fresh water system
      • Fireboy® MA2-1500, auto extinguisher system
      • Reverso® oil change system for engines, generators, and transmissions
      • ZF Electronic engine controls (2 station)
      • VDO® rudder indicators on wheelhouse and flybridge control station
      • Electro guard® HD-SB, propeller shaft grounding wiper brush system
      • Aqualoy® 22HS, rudder posts
      • 5 blade Nibral propellers (Class S)
      • Algae-X® FPS 500-A, fuel polishing system
      • Garden hoses 75 feet (2)
  • Hydraulic steering system Teleflex or equivalent
  • Electronic engine and shift controls of ZF Mathers or equivalent
  • Bow Thruster – ABT 10 hp, 24VDC or equivalent
  • Articulating Rudder of stainless steel
  • ZF prop shaft
  • PYI dripless shaft seal
  • 4-bladed class 1 prop
  • Shaft zinc and bonded transom underbody zincs
      • Northern Lights M844W3 generator (16kw) with sound enclosure
      • Par® 35440-0010 engine room blower 24VDC (2)
      • Engine room blower, 240VAC (2)
      • Torid® SS, water heater with heat exchanger, 20 US gals (2)
      • Genuine Marine AC and DC circuit control breaker panels
      • Aqua Signal® Series 43 LED navigation lights
      • Buell®, Duplex air horn, solenoid and 24 volt compressor
      • Lifeline AGM battery 12V/225AH, (8) for ship’s service
      • Lifeline AGM battery 12V/225AH, (2) for engines
      • Lifeline AGM battery 12V/225AH, (1) for generator and electronics
      • Automatic bilge pump 24VDC (5) with automatic float switches, indicating lights and high bilge water alarm system
      • Bonding system with zinc anodes (2) on transom
      • Glendinning® cable master with 90ft, 50A cable with remote controls
      • Charles® 93-IXFMR12I-A, isolation transformer
      • Victron Quattro 24/5000/120 inverter charger
      • Victron Phoenix 24V charger
      • Intercom (4) for flybridge, E/R, P/H and master stateroom
      • Color-coded wiring system of tinned copper wire
      • Emergency parallel switch for engines and house bank
      • Wipers with windows washer system for all forward facing pilothouse windows
      • Dimmer switches for all overhead lighting
      • Vimar® outlets and switches
      • Cantalupi® interior and exterior lighting
      • Jabsco® 45900-0001, flood lights (2)
      • Jabsco® 60010-2024 255SL, search light (1)
  • Owner specified, pre-wiring may be done at factory
  • Port and starboard side doors, Dutch style, swinging.
  • Electric hot air defroster over helm station, three outlets, one per forward facing window
  • Custom wood steering wheel – 30″
  • Windshield wipers with integrated washers on all three forward facing windows
  • AC/DC electrical panels on either side of steering station
  • Overhead LED lights w/red lights above dash w/dimmer
  • Overhead panel for electronics installation, wood faced
  • L-shaped settee with hi/low table converts to berth
  • Remote start/stop switch for main engine and generator
  • Pilothouse windows to be tempered and/or safety glass with black fret border
  • Reading lights behind settee
  • (3) 110VAC duplex electrical outlets
  • 12VDC convenience outlet on dash for charging cell phones, etc.
  • Helm chair – ultra leather with adjustable height pedestal, Llebroc (or equivalent)
  • Dash panel of black solid surface material with glare screen wrapped in black vinyl
  • (2) sliding windows on aft bulkhead
  • Flooring – natural cork with dark cork border
  • Broan model 15SS, trash compactor
  • Sub Zero 700TCI, refrigerator/freezer, 120VAC
  • Viking VGIC 24” Range
  • Viking VWH 24” Ventilation hood
  • Panasonic NNC994S S/S microwave/convection oven
  • Insinkerator® Evolution Excel, garbage disposal under sink
  • Franke GNX11028 stainless steel sink (or equivalent)
  • Grohe Ladylux Café single lever kitchen faucet
  • Side window over sink, Freeman 1200 Series opening
  • Teak, cork or oak floor
  • Corian counter top
  • 120VAC and 24VDC lighting
  • 120VAC outlet (3)
  • Lower and overhead cabinets of cherry, teak, or mahogany
  • Built-in L-shaped settee to port with storage under
  • Yacht table – hardwood with select veneers for top, fixed height
  • (4) 110VAC duplex electrical outlets
  • Entertainment cabinet
  • Wall mounted sconce style lights of 110VAC
  • Saloon windows tinted with hardwood trim rings and rounded corners
  • Overhead valance with room to accommodate shades
  • Bamboo style drop shades
  • Owner supplied furniture for space on starboard side
  • Flooring – carpet with carpet pad under
  • Queen sized berth with 8″ spring mattress and drawer storage below
  • Bedded glass windows port side
  • Cedar lined hanging lockers with automatic lighting
  • Headboard with designer appointments including mirror and wood trim
  • Wall treatments with foam backing
  • (2) bulkhead mounted reading lamps
  • Built-in seat with storage under
  • (3) 110VAC duplex outlets
  • Flooring – Carpeting with pad under
  • Solid surface counter top of Corian (or equivalent)
  • Portlight
  • Toilet – Headhunter or equivalent
  • FRP shower stall with saloon style glass doors
  • Grohe fixtures for sink and shower with removable wand type shower head
  • (1) 110VAC duplex electrical outlet, GFI
  • Mirrors, (1) large mounted over toilet and (1) shaving mirror adjacent to sink
  • Exhaust fan – 110VAC
  • Towel and toilet paper holders
  • Flooring – Amtico (or equivalent)
  • Queen sized berth with 8″ spring mattress and drawer storage below
  • Portlights (1) port side, (2) starboard side
  • Reading lamps (2), one at each berth
  • Cedar lined hanging lockers with automatic lighting
  • (3) 110VAC duplex electrical outlet
  • Side cabinets on either side of berth
  • Forward bulkhead with designer appointments including mirror and wood trim
  • Flooring – Carpeting with pad under
  • Solid surface counter top of Corian (or equivalent)
  • Portlight
  • FRP shower stall with saloon style glass doors
  • Toilet – Headhunter or equivalent
  • 110VAC duplex electrical outlet, GFI
  • Grohe fixtures for sink and shower with removable wand type shower head
  • Exhaust fan, 110VAC
  • Cabinet below sink
  • Mirror
  • Towel and toilet paper holders
  • Flooring – Amtico (or equivalent)
      • Upper and lower bunk berths
      • Carpet flooring with sound insulating pad under
      • Hanging locker (1)
      • 120VAC or 24VDC lighting
      • 120VAC outlet (1)
      • Drawers
      • Mirror (1)
  • Solid surface counter top of Corian (or equivalent)
  • Portlight
  • Toilet – Headhunter or equivalent
  • “Wet Head” shower
  • 110VAC duplex electrical outlet, GFI
  • Grohe fixtures for sink and shower with removable wand type shower head
  • Exhaust fan, 110VAC
  • Cabinet below sink
  • Mirror
  • Towel and toilet paper holders
  • Flooring – Amtico (or equivalent)
  • Hand selected hardwood and veneers
  • Soft wall coverings, foam backed
  • Hardwood raised panel interior passage doors with blended arched tops
  • Locking latches on interior cabinetry – push/pull positive Southco (or equivalent)
  • Interior cabinetry drawers with side mount, full extension, ball bearing drawer guides
  • Interior cabinetry doors use fully adjustable Euro style hinges
  • Cabinets to have pre-finished maple interiors for easy cleaning and furniture grade quality
  • Interior hand rails (stainless steel or hardwood) on stairways
  • Hand rails (hardwood) on overhead in saloon, overhead in pilothouse, overhead in master
  • Hand rails (hardwood) on either side of steering station integral to counter trim
  • Overhead lights of Halogen or LED
  • Bosch washer/dryer
  • All headliners of acoustic soft, foam backed vinyl in eggshell or white panels
  • All electrical switches and outlets are Vimar
  • Dimmer switches in saloon, galley, pilothouse and master stateroom
  • Windows tinted (exception, 3 forward facing pilothouse windows)
  • Window treatments – designer blinds in saloon and galley
  • Storage areas with carpet lined bottoms and sides

NOTE: These preliminary specifications have been prepared to cover equipment and materials as accurately as possible. Specifications are continually under review and subject to change without notice.

Date:  6-24-2014  All Rights Reserved — This information and all associated materials and their content may not be copied, duplicated, distributed, or used without prior written permission.
